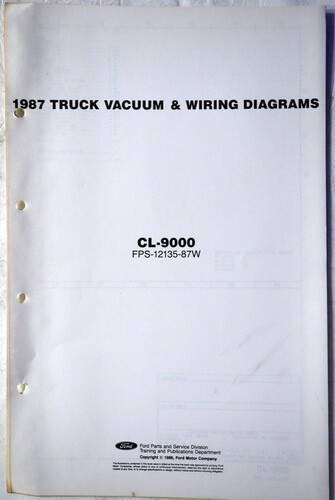

1987 Ford CL-9000 Wiring Diagrams

8 - 17" x 11" pages that fold out to 11" x 27" each | Published by the Ford Motor Company

Covering Connector Configurations * Circuit Identification and Location * Relays * Grounds * Wiring Diagrams * Color Coded in Black and White

This is the Original Wiring Diagram written by Ford specifically for the vehicle(s) listed. This ensures you get the job done right the first time. A must for anyone who insists on Genuine OEM quality parts.

Condition

Very good condition. Covers are clean. All pages are in place and straight. Page surfaces are clean.
