Ford Motor Company

1987 Ford F600 F700 F800 F8000 Fold Out Electrical Wiring Diagrams (COWL)

(No reviews yet) Write a Review
Condition:
New
$29.95

Out of stock

Description

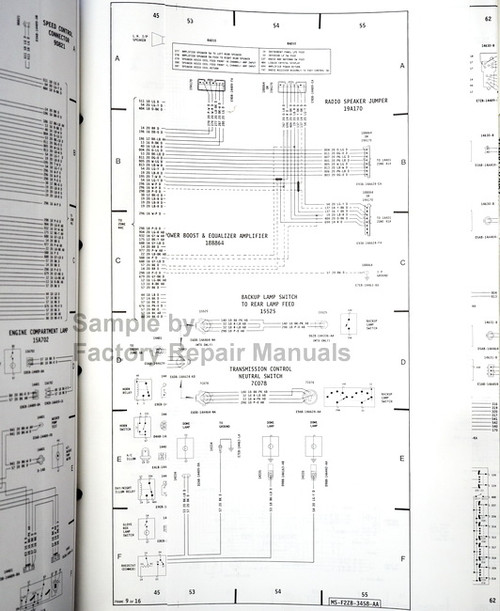

1987 Ford Truck F600-F8000 Wiring Diagrams (COWL)

Covering the following Ford Trucks (COWL Types Only): F600, F700, F7000, F800, F8000 Trucks | *NOTE: Does Not cover Cab Types

5 - 17" x 11" pages that fold out to 11" x 27" each | Published by the Ford Motor Company

Covering Connector Configurations * Circuit Identification and Location * Relays * Grounds * Wiring Diagrams * Color Coded in Black and White

This is the Original Wiring Diagram written by Ford specifically for the vehicle(s) listed. This ensures you get the job done right the first time. A must for anyone who insists on Genuine OEM quality parts.
