Ford Motor Company

1990 Ford F150 F250 F350 Truck Bronco Electrical Wiring Diagrams Original

(No reviews yet) Write a Review
Condition:
Used
$79.95

Out of stock

Description

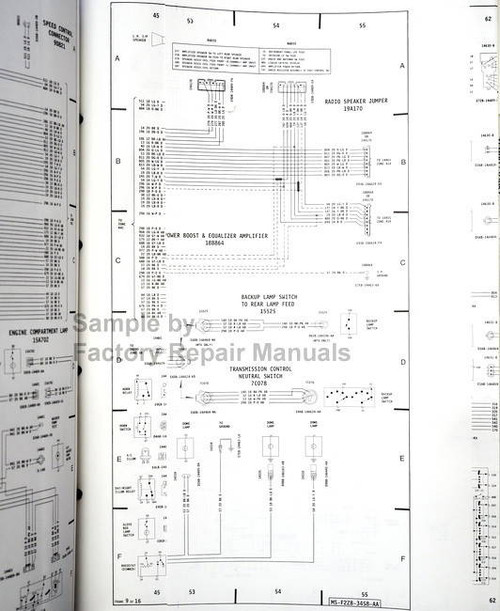

1990 Ford F-150, F-250, F-350, Bronco, F-Super Duty Electrical Wiring Diagrams

F150, F250, F350, F-Super Duty - All Trim & Cab Styles | Bronco | F-Super Duty Stripped Chassis, Class A Motorhome Chassis

16 - 17" x 11" pages that fold out to 11" x 27" each | Published by the Ford Motor Company

Covering Connector Configurations * Circuit Identification and Location * Relays * Grounds * Wiring Diagrams * Color Coded in Black and White

This is the Original Wiring Diagram written by Ford specifically for the vehicle(s) listed. This ensures you get the job done right the first time. A must for anyone who insists on Genuine OEM quality parts.

Condition

Very good condition. Covers are clean. All pages are in place and straight. Page surfaces are clean.
