1990 Ford Medium Heavy Duty Truck Bus Electrical & Vacuum Troubleshooting Manual

1990 Ford Medium and Heavy Duty Truck Electrical & Vacuum Troubleshooting Manual

Covering the following Ford Trucks: F600, F700, F800, FT800, FT900, B600 & B700 Bus Chassis, C8000 & CT8000 | Gasoline & Diesel Engines

Published by the Ford Motor Company

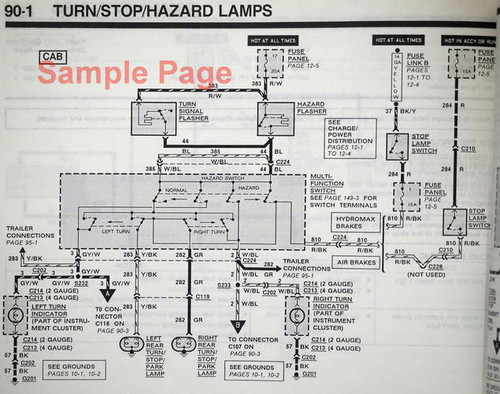

Connector Configurations * Harness Locations * Circuits * Relays * Grounds * Vacuum Diagrams * Valve & Sensor Locations * Hose Colors * Vacuum Distribution * Wiring Diagrams

This is the Official Manual of the dealerships, written by Ford specifically for the vehicle(s) listed. This ensures you get the job done right the first time. It is very detailed with good diagrams and exploded views. A must for anyone who insists on Genuine OEM quality parts.
11" x 8.5" x .6". Approx. 275 pages.

Condition

Very good condition. Covers show light wear. All pages are in place and straight. Page surfaces are clean.

Topics Include

• General Information
• Grounds
• Fuse Panel/Circuit Protection
• Charging System
• Power Distribution
• Communication Network
• Wiring Diagrams
• Component Testing
• Connector Faces
• Component Location Views
• Harnessing
• Vehicle Repair Location Codes
