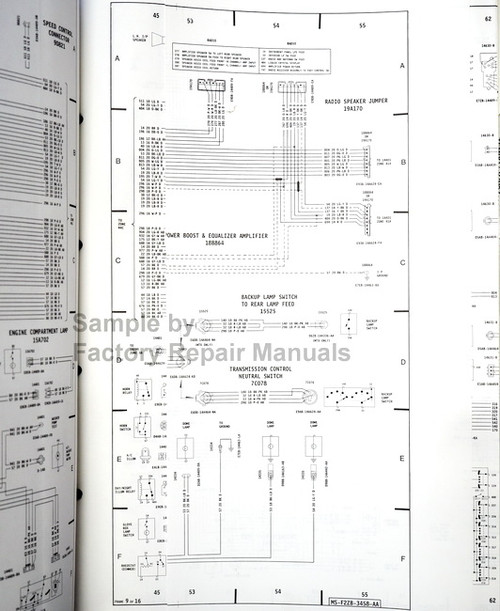

1990 Ford Truck F600 F700 F800 B600 B700 Electrical Wiring Diagrams (COWL)

1990 Ford Truck F600-F800 Wiring Diagrams (COWL)

Covering the following Ford Trucks (COWL Types Only): B600 B700 Bus Chassis / F600, F700, F800 Trucks | *NOTE: Does Not cover Cab Types

5 - 17" x 11" pages that fold out to 11" x 27" each | Published by the Ford Motor Company

Covering Connector Configurations * Circuit Identification and Location * Relays * Grounds * Wiring Diagrams * Color Coded in Black and White

This is the Original Wiring Diagram written by Ford specifically for the vehicle(s) listed. This ensures you get the job done right the first time. A must for anyone who insists on Genuine OEM quality parts.
