1992 Ford Truck F600 F700 F800 B600 B700 Fold Out Wiring Diagrams (COWL)

(No reviews yet) Write a Review
Condition:
New
$24.95

Out of stock

Description

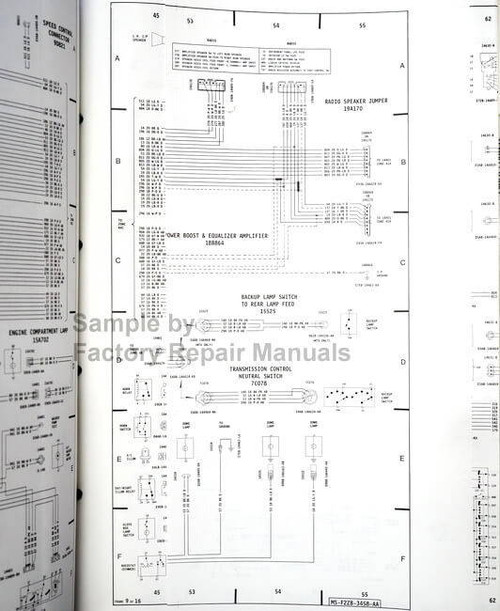

1992 Ford F-B-600-700-800 (Cowl) Wiring Diagrams

Covering the following Ford COWL Trucks (Does Not Cover Cab Types): F600, F700, F800 Trucks / B600 & B700 Bus Chassis (All B Series are Cowls)

5 - 17" x 11" pages that fold out to 11" x 27" each | Published by the Ford Motor Company

Covering Connector Configurations * Circuit Identification and Location * Relays * Grounds * Wiring Diagrams * Color Coded in Black and White

This is the Original Wiring Diagram written by Ford specifically for the vehicle(s) listed. This ensures you get the job done right the first time. A must for anyone who insists on Genuine OEM quality parts.
