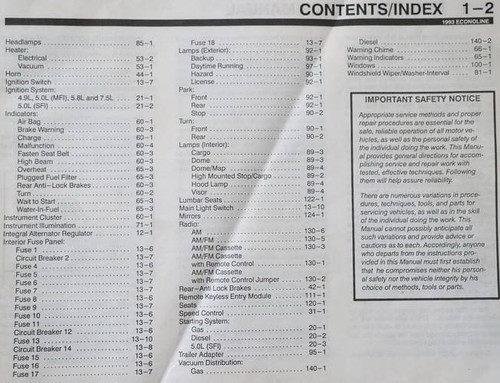

1993 Ford Econoline Electrical and Vacuum Troubleshooting Manual

Econoline E150, E250, E350, E350HD Standard Cargo Van, Extended Cargo Van, Cutaway Van & C Class Motorhome Chassis / Econoline (E150, E250, E350, E350HD) Club Wagon Passenger Van XLT, Custom & Chateau | Gasoline and Diesel Engines

Published by the Ford Motor Company

Connector Configurations * Harness Locations * Circuits * Relays * Grounds * Vacuum Diagrams * Valve & Sensor Locations * Hose Colors * Vacuum Distribution * Wiring Diagrams

This is the Official Manual of the dealerships, written by Ford specifically for the vehicle(s) listed. This ensures you get the job done right the first time. It is very detailed with good diagrams and exploded views. A must for anyone who insists on Genuine OEM quality parts.
11" x 8.5" x .65". Approx. 325 pages.

Condition

*Poor condition. *Front cover is missing. All pages are in place and straight. Page surfaces are mostly clean.

Topics Include

• General Information
• Grounds
• Fuse Panel/Circuit Protection
• Charging System
• Power Distribution
• Communication Network
• Wiring Diagrams
• Component Testing
• Connector Faces
• Component Location Views
• Harnessing
• Vehicle Repair Location Codes
