2005 Jeep Liberty Diesel Transmission Diagnostic Procedures Manual

Transmission Diagnostics for the Liberty Sport & Liberty Limited with the 2.8L I4 Diesel Engine

*NOTE: This DOES NOT cover service or repair | Published by the Chrysler Corporation

Covering System Identification * Functional Operation * On-Board Diagnostics * Diagnostic Trouble Codes * DRBIII Error Messages * Component Locations * Connector Pinouts * Schematic Diagrams * Charts and Graphs

This is the Official Diagnostics Manual that the dealers and shops use, written by Chrysler specifically for the vehicle(s) listed. This book contains all the specifications, instructions, and diagnostic trouble codes needed to diagnose the system or systems listed. This ensures you get the job done right the first time.
11" x 8.5" x .6". Approx. 238 pages.

Condition

Very good condition. Covers show little wear. All pages are in place and straight. Page surfaces are clean.

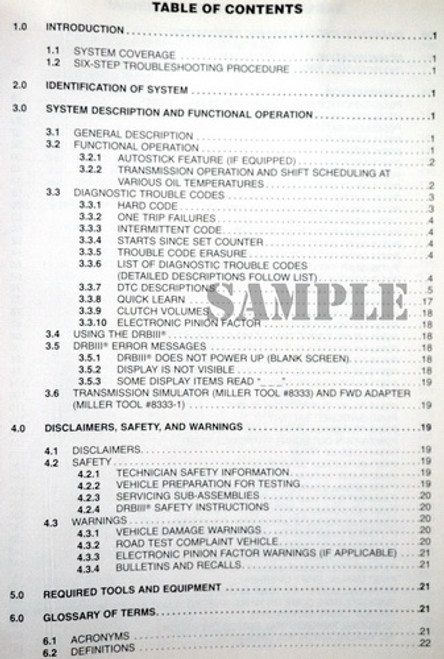

Table of Contents

• Identification of System
• System Description and Functional Operation
• Disclaimers, Safety, Warnings
• Required Tools and Equipment
• Glossary of Terms
• Diagnostic Information and Procedures
• Component Locations
• Connector Pinouts
• Schematic Diagrams
• Charts and Graphs
