2009 Ford Mustang and Shelby GT500 Factory Service Manual Original Shop Repair Set

(2 reviews) Write a Review
Condition:
Used
On Sale
  • 2009 Ford Mustang Workshop Manual Volume 1 and 2

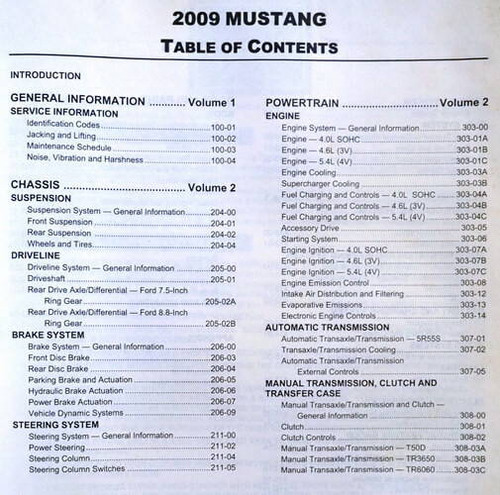

  • 2009 Ford Mustang Workshop Manual Table of Contents 1
  • 2009 Ford Mustang Workshop Manual Table of Contents 2
  • 2009 Ford Mustang Workshop Manual Volume 1 and 2
Now: $139.95
Was: $169.95

Out of stock

Description

2009 Ford Mustang Workshop Manuals

Service and Repair for the Ford Mustang Base, Mustang Lujo, Mustang GT, Mustang Bullitt, Mustang Shelby GT500, Mustang Shelby GT500KR | Coupe and Convertible | 4.0L V6, 4.6L & 5.4L V8 Engines

2 Volume Set | Published by the Ford Motor Company

Covering Specifications * Maintenance * Diagnosis & Testing * In Vehicle Repairs * Component Removal * Disassembly * Reassembly * Installation * Electrical

These are the Official Service Manuals that the dealers and shops use, written by Ford specifically for the vehicle(s) listed. This ensures you get the job done right the first time. They are incredibly comprehensive with detailed diagrams and exploded views. These are the best money can buy and a must for anyone who insists on Genuine OEM quality parts.
11" x 8 1/2" x 3.8". Approx. 1,900 pages.

Condition

Good condition. Covers show light wear. All pages are in place and straight. Page surfaces are mostly clean.

Table of Contents

Volume 1 of 2

  • General Information
  • Service Information
  • Climate Control System
  • Instrumentation & Warning Systems
  • Battery & Charging System
  • Audio Systems
  • Lighting
  • Electrical Distribution
  • Electronic Feature Group
  • Body - Interior and Exterior
  • Frame & Mounting

Volume 2 of 2

  • Suspension
  • Driveline
  • Brake System
  • Steering System
  • Engine Mechanical
  • Engine Cooling
  • Fuel Charging and Controls
  • Starting
  • Ignition
  • Engine Emission Controls
  • Automatic Transmission
  • Manual Transmission
  • Clutch and Transfer Case
  • Exhaust System
  • Fuel System
